Set Up the lights

The final step in creating a design will be adjusting the room lights and generating a render to obtain a photorealistic image of it.

Both tools are located within the “Photo” tab:

Press on the “Lights” option to modify the lights: 1) turn them on or off, 2) enable shadow generation, 3) adjust intensity, 4) elevation or height, and 5) light position:

If you select a light in the lights window, you’ll see its location reflected in the floor plan design. It’s crucial that all lights are positioned within the room.

For our example, activate only the lights as shown in the following screenshot (shadow only on “Light 2” ):

NOTE: It’s essential to consider that each design is different and requires specific placement of lights, their intensities, elevation, etc. You’ll need to experiment with modifying the lights in each project until you achieve the desired result.

Creating a photorealistic image

Now we’re going to create the picture of the kitchen. To do this, we’ll retrieve the view we saved in the previous step. You can go to the “View -> Open saved view” tab, or even easier and faster: right-click anywhere on the screen and select “Open saved view” :

Select the view we had saved, press the OK button, and the perspective we created earlier will be displayed:

Once the perspective is retrieved, click on the “Photo” option, and the following window will appear where you can configure various options to generate the photorealistic image: photo resolutionimage qualityreflection on the floor and wallsoverall light intensity, etc. For our example, configure the window with these options:

After accepting, this new window will open where the photo of our project will be gradually generated. (NOTE: the time it takes for Quick3DPlan to finish the photo will depend on the selected quality, the resolution/size of the image, the power of the computer, etc.).

You can minimize the window while the photo is being generated. After a few minutes, you’ll have the photorealistic image of your design in the rendering window:

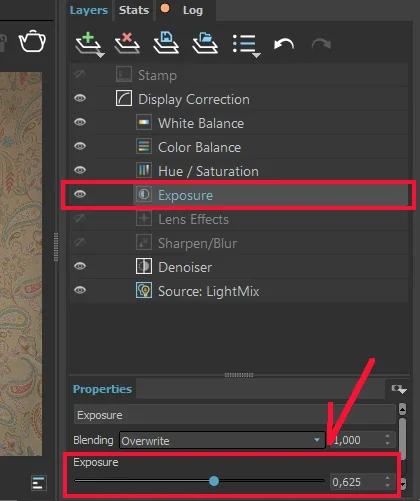

NOTE: It is possible to increase the “exposure” of the photo to give it more clarity. To do this, click on the “Exposure” option, and move the bar that appears at the bottom to the right:

Saving the photorealistic image

Save the photo by clicking on this button in the top menu. Give it a name, choose the image type (.JPG), and click on the “Save” button:

And this would be the final result of the project we have created:

Imagen fotorrealista armario sin puertas
*Photorealistic image of a doorless closet generated with Quick3DCloset

You can also see how the closet would look by activating the doors from the “View” tab, using the “ON / OFF” option, as we saw in the previous lesson.

Imagen fotorrealista de un armario con puertas
*Photorealistic image of a closet with doors generated with Quick3DCloset

How to modify lights and create a render in Quick3DCloset

You can watch a more advanced video on how to modify lights and create a render in Quick3DCloset here:

NOTE: Vídeo in Spanish made with Quick3DPlan, but the tools are the same in Quick3DCloset.

Save project

Save the project again, go to the “Projects” tab, and click directly on the “Save” button.

And that concludes the basic course to learn how to use Quick3DCloset.

Thank you for your attention, and I hope it’s helpful to you.
